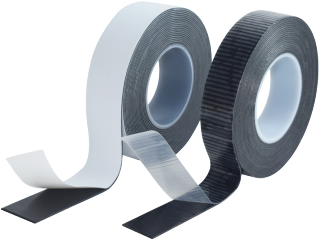

HIGH-VOLTAGE RUBBER WATERPROOF SELF-ADHESIVE TAPE
Characteristic
- Excellent insulation,mechanical stability, and weather resistance. High dielectric strength and durability, suitable for electrical insulation applications.
Applications
- Designed for 10KV and below cable terminals / joints, providing insulation, waterproofing, and sealing.
- Operating temperature range: ≤90°C.
Storage Requirements
- 30monthsshelf life from production date. Store at room temperature in ventilated, indoor, and shaded conditions.
Product Specification
SA10 0.8mm(Thickness)*19mm(Width)*4.5Y(Length) 82mm 10KV Pressure Resistance
| SA20 | 0.8mm(Thickness)*23mm(Width)*5Y(Length) | 85mm | 10KV Pressure Resistance |
| SA20S | 0.8mm(Thickness)*50mm(Width)*5m(Length) | 85mm | 10KV Pressure Resistance |
Technical Parameters
| Total | Tensile Strength | Elongation at Break | Breakdown | Volume Resistivity | Dielectric | Self-Adhesion |
| Thickness | (Longitudinal) | (Longitudinal) | Strength | (20°C) | Constant | (24h) |
| 0.8mm | ≥1.3Mpa | ≥400% | ≥20KV/mm | ≥1X1014 | ≤5.0 | No loosening |
How to Use
- Removetherelease film and stretch the tape by 200%, wrap in a half-overlap manner around the target area for insulation/waterproofing. Add an outer protective layer of PVC adhesive tape for enhanced durability.
ETHYLENE PROPYLENE RUBBER SELF-ADHESIVE TAPE
Characteristic
- ·The special rubber tape made of EPR polymer material has good self-adhesive and waterproof properties. After wrapping, the insulation layer is integrated and not easy to fall off, with good sealing,excellent weather resistance and aging resistance.
Intended Applications
- ·Main insulation restoration of 600-69000V solid dielectric cables. Primary insulation restoration with stress cones on solid dielectric cables up to 35000 volts.
Storage Requirements
- 30 months shelf life from production date. Store at room temperature in ventilated, indoor, and shaded conditions.
Product Specification
SA-23 0.8mm(Thickness)*25mm(Width)*5m(Length) 85mm 69KV Pressure Resistance
Technical Parameters
| Total | Tensile Strength | Elongation at Break | Breakdown | Volume Resistivity | Dielectric | Dielectric Loss |
| Thickness | (Longitudinal) | (Longitudinal) | Strength | (20°C) | Constant | Tangent |
| 0.8mm | ≥1.0Mpa | ≥800% | ≥20KV/mm | ≥1X1014 | ≤5.0 | ≤0.05 |
How to Use
- Wheninuse, it should be folded and wrapped until the desired thickness is reached. The tape should be stretched by about 200% before use. In critical areas, the tape should be stretched to the point of rupture. This will not change its physical or electrical characteristics. In less critical areas, there is no need to extend it for such a long time. Store in a cool and dry environment.
