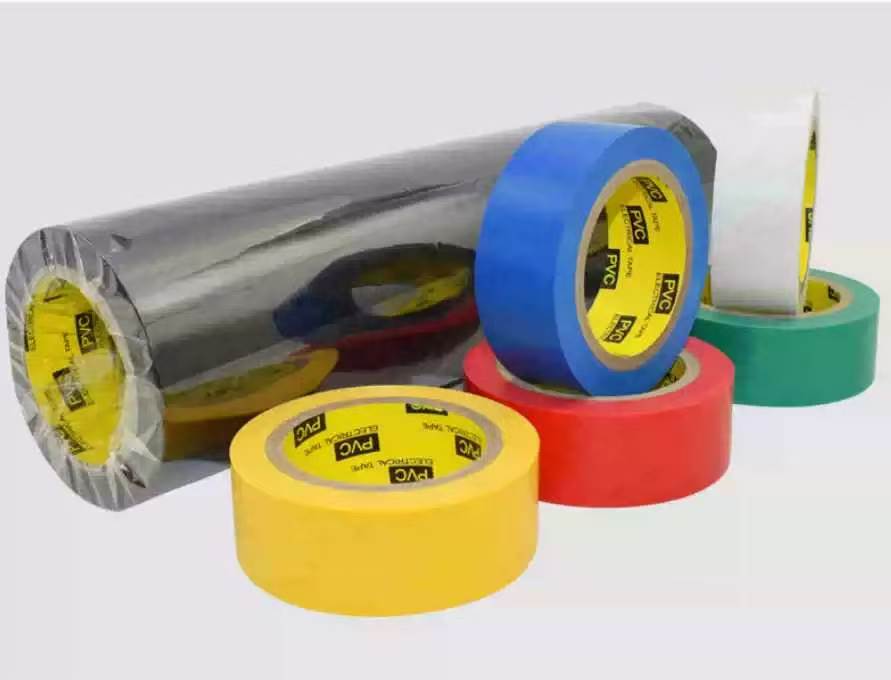

PVC FLAME RETARDANT ELECTRICAL TAPE

PVC FLAME RETARDANT ELECTRICAL TAPE (MATTE-SURFACE WITH GLOSSY LETTER)

Characteristic

·Thin PVC flame-retardant film material, excellent flame retardancy, difficult to ignite, self-extinguishing, strong adhesion and good flexibility. Intended Applications

·For insulation of wire or cable connections (≤80°C, ≤600V). ·Phase color identification, protective sheath, and wire bundling. ·Provides excellent flame retardancy in fire-prone environments. Storage Requirements

24months shelf life fromproduction date. Store at room temperature in ventilated, indoor, and shaded conditions.

Products Specifiction

PFRET 1315	0.13mm(Thickness)*17mm(Width)*15m(Length)	68mm	Matte/Flame Retardant
PFRET 7200	0.15mm(Thickness)*18mm(Width)*12m(Length)	70mm	Matte/Flame Retardant
PFRET 7223	0.15mm(Thickness)*23mm(Width)*12m(Length)	70mm	Matte/Flame Retardant



Total Thickness	Tensile Strength	Elongation	Peel Strength	Adhesion	Dielectric Strength  Breakdown Voltage
0.13mm	20N/cm	170%	1.8N/cm	0.38kg/25mm	≥40KV/mm	≥5000V
0.15mm	22N/cm	180%	1.8N/cm	0.40kg/25mm	≥40KV/mm	≥5000V

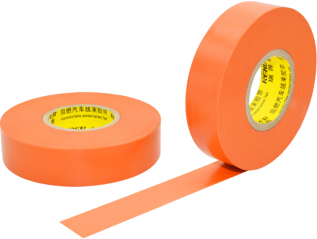

NEW ENERGY AUTOMOBILE PVC FLAME-RETARDANT TAPE

Characteristic

·Made of PVC film blended with premium plasticizer and coated with high-performance pressure-sensitive adhesive. ·Excellent insulation, flame retardancy, voltage resistance, and aging resistance. ·Eco-friendly, compliant with ROHS [2002/95/EC] 6-item standards. Intended Applications

·For wire harness winding and bundling in automotive applications with a temperature rating of 85°C. Storage Requirements

24months shelf life fromproduction date. Store at room temperature in ventilated, indoor, and shaded conditions.

Product Specification

RENDER 1035      0.10mm(Thickness)*19mm(Width)*35m(Length)                 80mm             Matte-surface/Flame retardan

Total Thickness	Tensile Strength	Elongation	Peel Strength	Temperature	Dielectric Strength	Breakdown Voltage
0.10mm	14N/cm	130%	1.4N/cm	85℃	40KV/mm	5000V

Note: The above data are all general averages and are for reference only. The actual product data should be based on the results of actual testing. When using this product, it is necessary to understand the applicable scope. For cases beyond the applicable scope, our company will not bear any losses or responsibilities arising therefrom. How to Use

• Beforeusingthe tape, please perform a simple cleaning at the sticking position to remove surface grease, dust, moisture, etc. Wrap the joint area in a semi-overlapping manner, apply sufficient tension to ensure the wrapping is uniform and neat. At the last layer of wrapping, do not stretch excessively to prevent the phenomenon of curling.
