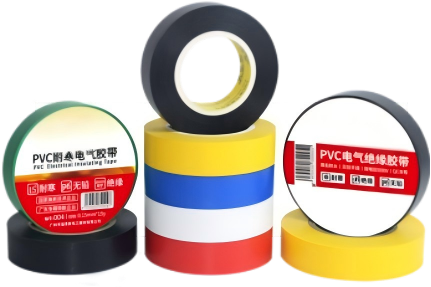

PVC COLD-RESISTANT ELECTRICAL TAPE (MATTE-SURFACE WITH BRIGHT LETTERING)

PVC COLD-RESISTANT ELECTRICAL TAPE(MATTE-SURFACE WITH BRIGHT LETTERING)

Characteristic

·Excellent insulation, flexibility, conformability, aging resistance, cold/ weather resistance, superior performance in low- temperature environments. Intended Applications

·Insulation for wire/cable connections below 80°C & 600V phase color identification, protective sheath, harness binding. Storage Requirements

·24 months shelf life from production date. Store at room temperature in ventilated, indoor, and shaded conditions

Products Specification



CREP 004	0.15mm(Thickness)*17mm(Width)*15Y(Length)	68.5mm	Matte-surface/Cold-Resistant
CREP 005/7017	0.15mm(Thickness)*17mm(Width)*11m(Length)	70mm	Matte-surface/Cold-Resistant
CREP 007	0.15mm(Thickness)*17mm(Width)*20Y(Length)	75mm	Matte-surface/Cold-Resistant
CREP 008	0.15mm(Thickness)*18mm(Width)*20m(Length)	76mm	Matte-surface/Cold-Resistant
CREP 6823	0.15mm(Thickness)*23mm(Width)*11m(Length)	68mm	Matte-surface/Cold-Resistant
CREP 7023	0.15mm(Thickness)*23mm(Width)*11m(Length)	70mm	Matte-surface/Cold-Resistant
CREP 7623	0.15mm(Thickness)*23mm(Width)*16.5m(Length)	76mm	Matte-surface/Cold-Resistant



Total Thickness	Tensile Strength	Elongation	Peel Strength	Adhesion	Dielectric Strength	Breakdown Voltage
0.15mm	22N/cm	180%	1.8N/cm	0.4kg/25mm	≥40KV/mm	≥5000V



PVC COLD-RESISTANT ELECTRICAL TAPE(SUPER BRIGHT)

Characteristic



·PVC super bright film material with good insulation, strong aging resistance and weather resistance, high flexibility and conformability, maintains adhesion unchanged in low-temperature environments. Intended Applications

·Suitable for temperatures: -26°C ~ 80°C. For 600V or below wire or cable joint insulation, phase color identification, protective sheath, and wire bundling. Storage Requirements

• 24monthsshelf life from production date. Store at room temperature in ventilated, indoor, and shaded conditions.

CREP SB 013	0.15mm(Thickness)*18mm(Width)*15Y(Length)	69mm	Super bright/Cold-resistant
CREP SB 015	0.15mm(Thickness)*18mm(Width)*20m(Length)	76mm	Super bright/Cold-resistant
CREP SB1915	0.165mm(Thickness)*19mm(Width)*15Y(Length)	69mm	Super bright/-26℃ Cold-resistant
CREP SB1920	0.165mm(Thickness)*19mm(Width)*20Y(Length)	76mm	Super bright/-26℃ Cold-resistant
CREP SB15m	0.15mm(Thickness)*18mm(Width)*15m(Length)	69mm	Super bright/Cold-resistant
CREP SB20m	0.15mm(Thickness)*18mm(Width)*20m(Length)	76mm	Super bright/Cold-resistant



Total Thickness  Tensile Strength	Elongation	Peel Strength	Adhesion	Dielectric Strength	Breakdown Voltage
0.15/0.165mm     22N/cm	180%	1.8N/cm	0.4kg/25mm	≥40KV/mm	≥5000V



Note: The above data are all general averages and are for reference only. The actual product data should be based on the results of actual

testing. When using this product, it is necessary to understand the applicable scope. For cases beyond the applicable scope, our company will not bear any losses or responsibilities arising therefrom.



How to Use

Before using the tape, please perform a simple cleaning at the sticking position to remove surface grease, dust, moisture, etc. Wrap the joint area in a semi-overlapping manner, apply sufficient tension to ensure the wrapping is uniform and neat. At the last layer of wrapping, do not stretch excessively to prevent the phenomenon of curling.
